How BIM Works in Construction: From Design to Operations
Building Information Modeling has moved beyond theory into daily construction practice. Every phase of modern projects from initial concepts through decades of building operations and now relying on BIM workflows that connect teams, prevent errors, and deliver measurable results. This guide breaks down exactly how construction professionals use BIM to build better, faster, and smarter.

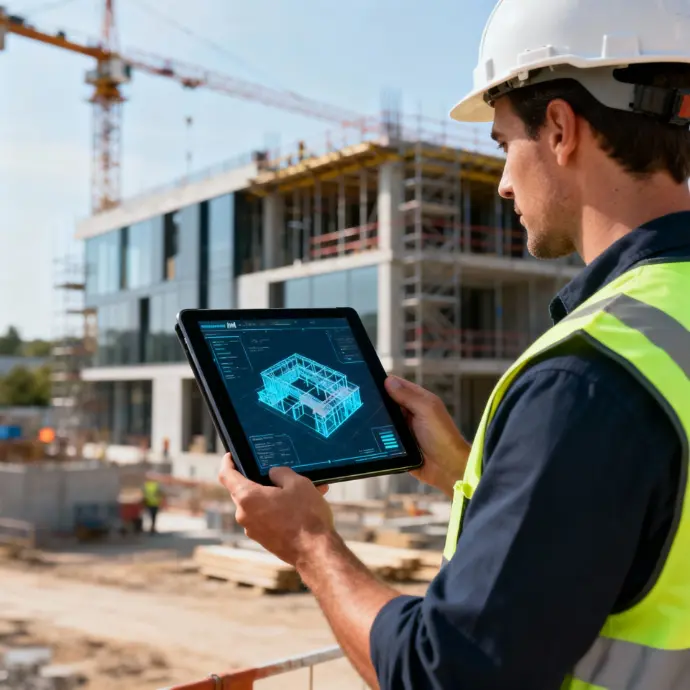

Construction professional using mobile BIM technology on active construction site
BIM in Pre-Construction: Planning That Prevents Problems
Conceptual Design and Feasibility Studies
Before breaking ground, project teams create early BIM models to test design concepts and run feasibility analyses. These preliminary models help owners visualize options, compare site layouts, and make informed decisions about project scope and budget.
Design Validation and Stakeholder Approval
BIM transforms client presentations from flat drawings into immersive 3D experiences. Stakeholders walk through virtual buildings, understand spatial relationships instantly, and provide feedback that shapes designs before costly commitments are made.
Early Cost and Schedule Modeling
4D BIM links construction schedules directly to 3D models, while 5D BIM integrates real-time cost data. Project managers simulate different construction sequences, identify resource bottlenecks, and create realistic timelines based on actual model data rather than rough estimates.
Collaborative Design Coordination
Real-Time Multi-Discipline Collaboration
BIM platforms like Trimble Connect and Autodesk BIM Collaborate enable architects, engineers, and specialists to work simultaneously on shared models. When structural engineers adjust beam locations, mechanical teams see changes instantly and adapt duct routes accordingly.
Cloud-Based Common Data Environments
Modern BIM workflows operate in cloud-based Common Data Environments (CDEs) where all project information lives in one accessible location. Teams access current models from any location, eliminating version control nightmares and ensuring everyone works from the same source of truth.
Standardized Communication Protocols
Effective BIM implementation requires clear protocols for data exchange, naming conventions, and update procedures. Teams establish these standards in BIM Execution Plans (BEPs) that define roles, responsibilities, and workflows before modeling begins.
Clash Detection and Risk Mitigation
Automated Conflict Identification
BIM software automatically detects thousands of potential conflicts, pipes intersecting beams, ducts clashing with structure, and conduits penetrating fire walls. What once required manual coordination meetings now happens digitally, catching 95% of clashes before construction starts.
Coordinated Trade Models
LOD 350 models show how different building systems connect and interface. Subcontractors see exactly where their work meets other trades, coordinate connection details, and resolve conflicts during weekly coordination sessions rather than discovering them on site.
Predictive Risk Analysis
BIM enables teams to simulate construction scenarios, identify safety hazards, and plan risk mitigation strategies. Virtual safety tours let contractors navigate sites digitally, plan equipment placement, and anticipate dangerous conditions before workers encounter them.
Construction Phase Implementation
Mobile BIM on Construction Sites
Field teams access BIM models through tablets and smartphones using apps like BIM 360 Mobile, Dalux, and OpenSpace. Workers verify installations against 3D models in real-time, photograph completed work linked to model locations, and create field notes pinned to specific building elements.
BIM Stations and Kiosks
Many projects deploy dedicated BIM stations on job sites with computers connected to cloud platforms where crews access current models without personal devices. These stations provide centralized access points where foremen review daily work, check details, and coordinate with multiple trades.
4D Construction Sequencing
Contractors use 4D BIM to visualize construction sequences, optimize logistics, and coordinate crane operations. The time-linked models help teams sequence deliveries, plan site access, and avoid congestion that causes delays and safety issues.
Progress Tracking and Quality Control
Mobile 3D scanning and reality capture technologies compare actual site conditions against BIM models. This automated progress tracking identifies deviations early, enables quick corrections, and provides documented proof of quality for project stakeholders.
BIM for Prefabrication and Manufacturing
Design to Fabrication Workflows
BIM streamlines transitions from design to manufacturing by providing fabrication ready LOD 400 models. Manufacturers receive precise geometry, connection details, and assembly instructions that eliminate manual shop drawing creation and reduce errors by 40%.
Parametric Modeling and Automation
Tools like Dynamo and Grasshopper automate repetitive prefab component creation, cutting design time by 30-50%. Parametric families allow quick resizing and adaptation of standardized elements, accelerating modular construction workflows.
Shop Drawing Generation
BIM automatically generates detailed shop drawings from coordinated models. Trade contractors extract 2D fabrication details, send them for engineering approval, and update models based on submittal feedback, all within integrated digital workflows.
Manufacturing Integration
Direct model to machine connections send BIM data to CNC equipment, robotic fabricators, and automated manufacturing lines. This digital fabrication eliminates manual data entry, ensures precision, and enables mass customization of building components.
Quantity Takeoffs and Cost Management
Automated Material Quantification
5D BIM automatically calculates material quantities from model elements. Estimators extract accurate counts for steel beams, concrete volumes, piping lengths, and equipment quantities without manual measurements or calculation errors.
Real-Time Budget Tracking
As designs evolve, BIM updates cost estimates automatically. Project managers track budget impacts of design changes instantly, compare alternatives by cost, and make informed value engineering decisions based on current data.
Procurement and Supply Chain Integration
BIM models connect to procurement systems, generating material orders with specifications, quantities, and delivery schedules. This integration optimizes supply chain management, reduces waste, and ensures materials arrive when needed.
As-Built Documentation and Handover
Field-Verified Model Updates
Construction teams update BIM models throughout building, creating accurate LOD 500 as-built documentation. Reality capture technologies like laser scanning verify installed conditions, ensuring models reflect actual construction.
COBie Data for Operations
BIM generates Construction Operations Building Information Exchange (COBie) data structured information about building components, warranties, maintenance schedules, and operating procedures. This standardized format enables seamless handover to facility management systems.
Digital Twin Creation
Completed BIM models become digital twins living representations continuously updated with operational data from building sensors and management systems. These twins support maintenance planning, energy optimization, and future renovation projects.
Facility Management and Operations
Space Management and Optimization
Facility managers use BIM to track occupancy, analyze space utilization, and optimize room assignments. The models show current tenants, room uses, square footages, and equipment locations, enabling data-driven decisions about space allocation.
Preventive Maintenance Planning
BIM links building components to maintenance schedules, equipment manuals, and service history. Facility teams schedule preventive maintenance based on actual equipment data, reducing failures and extending asset lifecycles.
Energy Performance Monitoring
Integrated with Building Management Systems (BMS), BIM visualizes energy consumption by system, zone, and equipment. Managers identify inefficiencies, optimize operations, and track sustainability performance against design targets.
Renovation and Retrofit Support
When buildings need updates, existing BIM models provide accurate baseline conditions. Design teams use as-built models to plan renovations, coordinate new systems with existing infrastructure, and minimize invasive investigations.
Industry Specific BIM Applications
Commercial Construction
Office buildings and retail projects use BIM for tenant fit-outs, complex MEP coordination, and leasing visualizations. The models support multi-tenant management and provide marketing materials that help pre-lease space.
Infrastructure Projects
Highways, bridges, and tunnels rely on Civil 3D and infrastructure specific BIM tools. These projects use BIM for earthwork calculations, drainage design, and coordination with underground utilities.
Healthcare Facilities
Hospitals leverage BIM for life safety simulations, infection control planning, and complex MEP systems. The models support ongoing operations by providing detailed information about medical equipment, emergency systems, and patient room layouts.
Industrial and Manufacturing
Industrial facilities use BIM for process equipment coordination, piping design, and maintenance access planning. The detailed models support plant operations and enable efficient turnaround planning for shutdowns.
Measuring BIM Success
Key Performance Indicators
Successful BIM projects track specific metrics: clash detection rates, RFI reduction percentages, schedule adherence, and cost savings. Companies using BIM report 37% fewer safety incidents, 40% less rework, and 10-15% cost savings.
Return on Investment Analysis
While BIM requires upfront investment in software, training, and process changes, most firms see positive ROI within 6-12 months. The combination of error reduction, faster delivery, and improved coordination typically pays back implementation costs quickly.
Continuous Improvement Cycles
Mature BIM users implement lessons-learned processes, refine standards after each project, and build libraries of proven components. This continuous improvement compounds benefits across projects and builds organizational BIM expertise.
Frequently Asked Questions
BIM identifies safety hazards through clash detection and 3D simulations before workers encounter them. Virtual safety planning, equipment placement visualization, and risk analysis reduce on-site accidents by over 37%.
Yes, cloud-based BIM platforms, mobile apps, and subscription software models make BIM accessible to firms of all sizes. Many small firms start with specific BIM applications like clash detection before expanding to full workflows.
Architects use BIM for design development and visualization, while contractors focus on constructability, sequencing, and cost control. Both work from shared models but extract different information relevant to their roles.
A BIM Execution Plan (BEP) defines project-specific BIM goals, workflows, responsibilities, and deliverables. It aligns stakeholders, prevents misunderstandings, and ensures everyone understands their BIM roles before work begins.
BIM provides fabrication ready models with precise dimensions and connection details. Direct model to machine connections enable automated manufacturing, reducing errors by 40% and cutting design time by 30-50%.
Absolutely, as-built BIM models become digital twins for facility management, supporting maintenance, energy optimization, and renovation planning throughout building lifecycles.
BIM cuts costs through clash detection for reducing rework, accurate quantity takeoffs for improving estimates, and better coordination for preventing delays. Most projects see 10-15% cost savings from BIM implementation.
Mobile BIM apps let field teams access models, create issues, verify installations, and document progress directly from job sites. This real-time connectivity eliminates delays from outdated information and improves coordination.
BIM is integrating with AI for automated design optimization, augmented reality for on-site visualization, and IoT sensors for real-time performance monitoring. Government mandates are expanding, making BIM essential for competitive construction firms.
